How Does a Fuel Rail Pressure Sensor Work?

The fuel rail pressure sensor is an essential element in modern fuel injection systems that monitors and maintains the fuel pressure within the rail. It gives the engine the fuel it needs for efficient combustion, which affects the vehicle’s performance, fuel economy, and emissions. If you are curious about how a fuel rail pressure sensor works, read more about the workings of this component!

The Purpose of the Fuel Rail Pressure Sensor

Every vehicle with a fuel injection system relies on consistent fuel pressure so that the engine performs at its best in various driving conditions. The fuel rail pressure sensor measures the fuel pressure within the rail and sends this information to the vehicle’s engine control unit (ECU). With this data, the ECU can adjust the fuel injection timing and volume to match the engine’s requirements.

Its Role in Fuel Injection Systems

Fuel injection systems depend on the appropriate air-to-fuel ratio. The fuel rail pressure sensor continually provides real-time pressure readings. For instance, when you accelerate, the engine’s fuel demands increase, and the sensor instructs the ECU to inject more fuel into the combustion chamber. Conversely, when idling, the engine uses much less fuel. This sensor not only maintains engine performance but also prevents fuel waste.

How the Sensor Works

The fuel rail pressure sensor operates by converting the pressure levels within the fuel rail into an electrical signal that the engine control unit can interpret. The ECU uses this data to adjust the fuel injection timing and quantity, guaranteeing optimal engine performance under different conditions, such as driving uphill.

Additionally, the added load requires the engine to produce more power, so the fuel rail pressure sensor detects the increased demand and signals the ECU to supply additional fuel to the combustion chamber. Precise adjustments improve efficiency and ensure the engine delivers the necessary power without delay.

When cruising on a flat road, the sensor reduces fuel supply to save energy and prevent excessive fuel consumption. This dynamic responsiveness highlights the crucial role of the sensor in maintaining a seamless driving experience.

Signs of a Faulty Fuel Rail Pressure Sensor

The fuel rail pressure sensor is subject to deterioration over time. Various factors—mechanical wear, exposure to contaminants, fuel residue buildup, electrical faults, or thermal stress—can contribute to failure. Since the sensor operates under constant pressure and temperature fluctuations, the internal strain gauge or piezoelectric elements may degrade, and electrical connectors or wiring can corrode or loosen.

Suppose a driver notices that their car has become harder to start over the past week and occasionally stalls at stoplights. The check engine light turns on, so they take the vehicle to a mechanic. Using an OBD-II scanner, the technician retrieves a trouble code (e.g., P0191 - Fuel Rail Pressure Sensor Range/Performance). Live data from the scan shows erratic fuel pressure readings that fluctuate, even when the engine is idling steadily. Upon inspection, the technician discovers that the sensor is coated with varnish from degraded fuel, and the electrical connector is corroded. After cleaning the connector and replacing the sensor, the engine starts smoothly, the idle stabilizes, and the fuel economy improves.

The Impact on Engine Performance

A failing fuel rail pressure sensor negatively affects engine performance. For instance, an inaccurate sensor in a 6.0 Powerstroke engine could result in improper air-to-fuel mixtures, causing inefficiency and reduced power output. Addressing sensor issues guarantees that the engine continues to operate reliably.

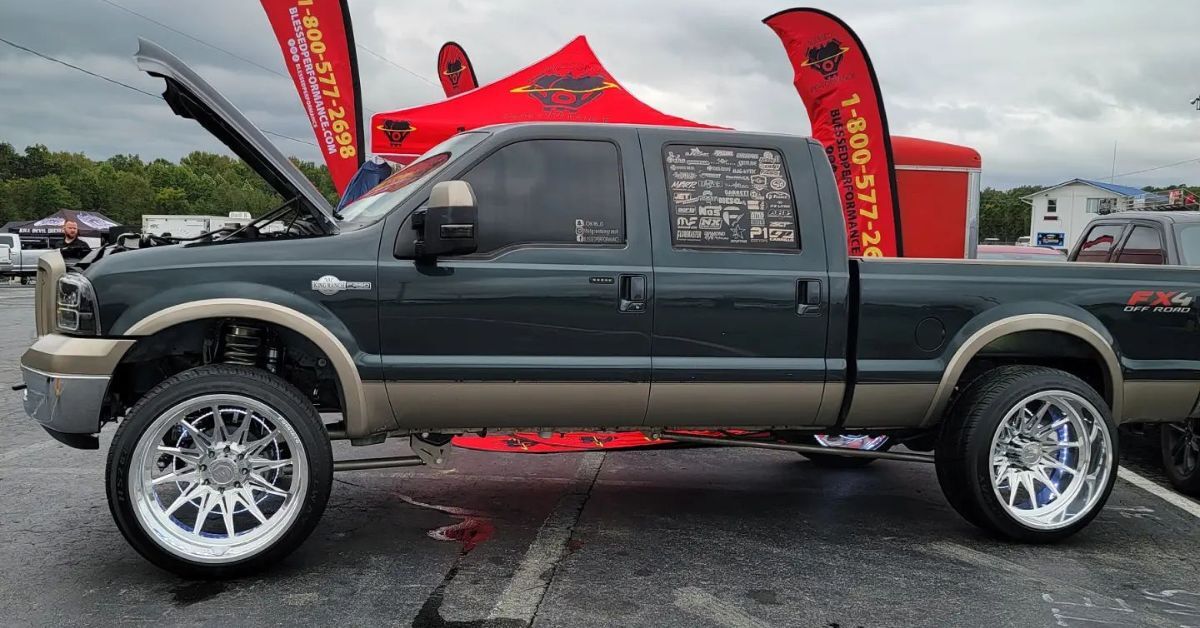

For example, a fleet operator might notice that one of their Ford F-250 trucks with a 6.0L Powerstroke is experiencing sluggish acceleration and is producing black smoke under the throttle. The driver might report hard starts in the morning. Upon scanning the ECU, the mechanic retrieves a P2291 code (Injector Control Pressure Too Low – Engine Cranking), pointing to a fuel pressure issue. Further diagnostics show that the fuel rail pressure sensor reads lower than the actual rail pressure.

Diagnosing Issues With the Sensor

Technicians use diagnostic tools, such as an OBD-II scanner or a digital multimeter, to determine if a fuel rail pressure sensor is operating correctly. With these tools, they can monitor the live data stream from the sensor and compare it with the manufacturer’s specified pressure range for different engine operating conditions. If the voltage output from the sensor is inconsistent or falls outside the expected range, it suggests a malfunction.

If a sensor has an output between 0.5 and 4.5 volts during normal engine operation but reads below 0.3 or fluctuates, it may indicate a faulty sensor or wiring issue. In some cases, the problem could be due to contamination, such as fuel varnish or debris, causing the sensor to give inaccurate readings. Cleaning the sensor might restore functions, but replacement is necessary if the damage is internal or causes other problems.

Replacing the Sensor

If a fuel rail pressure sensor fails, replacing it is crucial to restore optimal engine performance. Most vehicles place the sensor in an accessible location on or near the fuel rail, making replacement relatively straightforward for a trained technician. Using quality replacement parts is essential to avoid compatibility issues or premature failures.

Benefits of a Functional Sensor

An engine with a great-quality fuel rail pressure sensor maintains consistent performance. It also optimizes fuel efficiency, reduces emissions, and prolongs the life of an engine. This small yet significant component is a key player in modern automotive technology.

Preventing Sensor Issues

Routine maintenance and using clean, high-quality fuel can extend the life of the fuel rail pressure sensor. Periodically checking the fuel system for contaminants or blockages can also reduce the likelihood of sensor failure. Proactive care saves money and prevents the frustration of unexpected breakdowns.

The Future of Fuel Rail Sensors

With the ongoing advancements in automotive technology, fuel rail pressure sensors are becoming smarter and more reliable. New sensors integrate with advanced ECU algorithms and deliver even more precise data to enhance performance. This evolution in sensor technology demonstrates the automotive industry’s push for efficiency and sustainability.

Understanding how a fuel rail pressure sensor works allows drivers to appreciate its critical role in the condition of their vehicles. By recognizing failure symptoms and proactively maintaining the fuel system, you can avoid costly repairs and keep your vehicle running smoothly.
